AWE-16A

Electro-spark deposition welding machine (Cold welding machine)

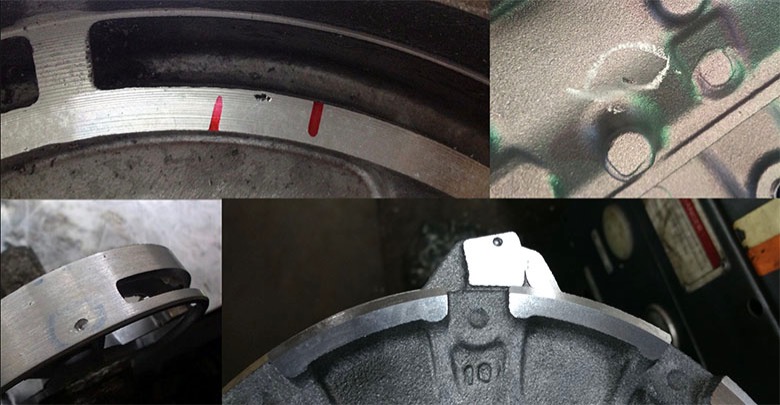

A casting defects welding machine !

Porosity defect

Sand hole defect

Crack defect

Angle broken

Shrinkage defect

Wear and tear

One machine to weld all those defects

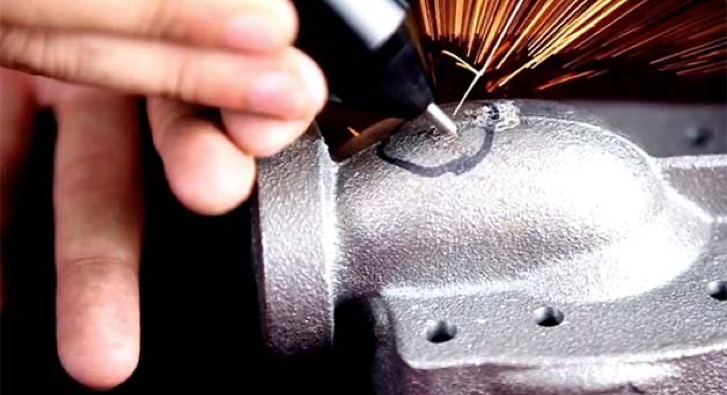

Electro-spark deposition process is to use the high-energy power stored and release instantly between electrode and matrix with high frequency release, through air ionization channels formed between the electrode and matrix to generate an instant high temperature, high pressure micro-region. While ion state of the electrode materials in micro-melt into the matrix, forming metallurgical combination.

Very small heat affected zone

No change of micro structure

Use cold welding technology, you can touch the welded surface immediately after welding. You will feel the surface  just worm not hot. Very small heat transferred into the casting compare to common welding machine.

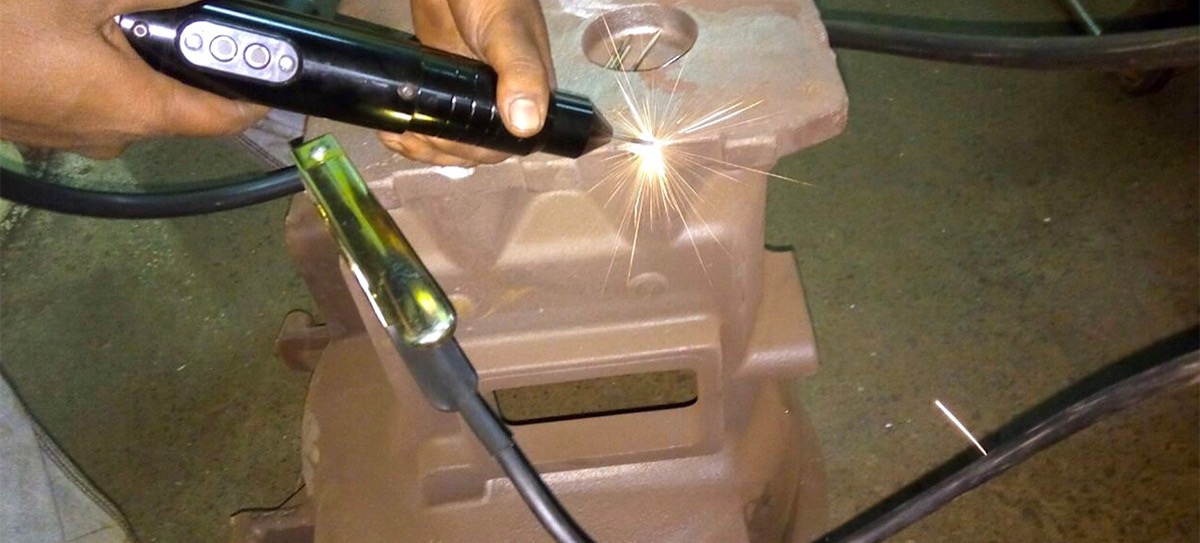

It will not annealing the casting to keep the mechanical structure unchanged.

ATOM cold welding

Heat affected zone

Common welding

Heat affected zone

Metallurgical bonding

Strong combination strength

Cold welding process will forming a metallurgical combination.

To use the right type of electrode cold welded surface will strongly combined into the casting. Will not drop during machining or grinding.

Suitable for all types of castings

ATOM AWE-16A cold welding machine is a new updated model with new design,

Over 20 improvements inside to make it more stable and more high efficiency.

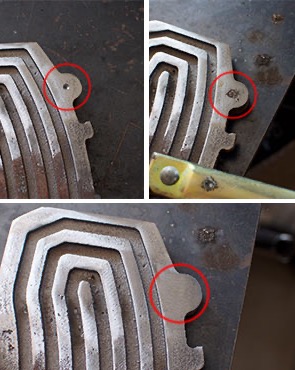

Can easily repair all kinds of surface defects.

Suitable wide range of castings.

Ductile iron

Auto parts / Windmill casting

Gray iron

Cylinder / Textile machinery

Steel

Industrial castings

Aluminum

Engine parts / Automobile hub

Copper

Power electrical facilities

Silver

Industrial / Crafts

Cast iron

Pump / Industrial castings

Brass

Ship parts / Precision instruments

Other alloys

Auto parts / Industrial parts

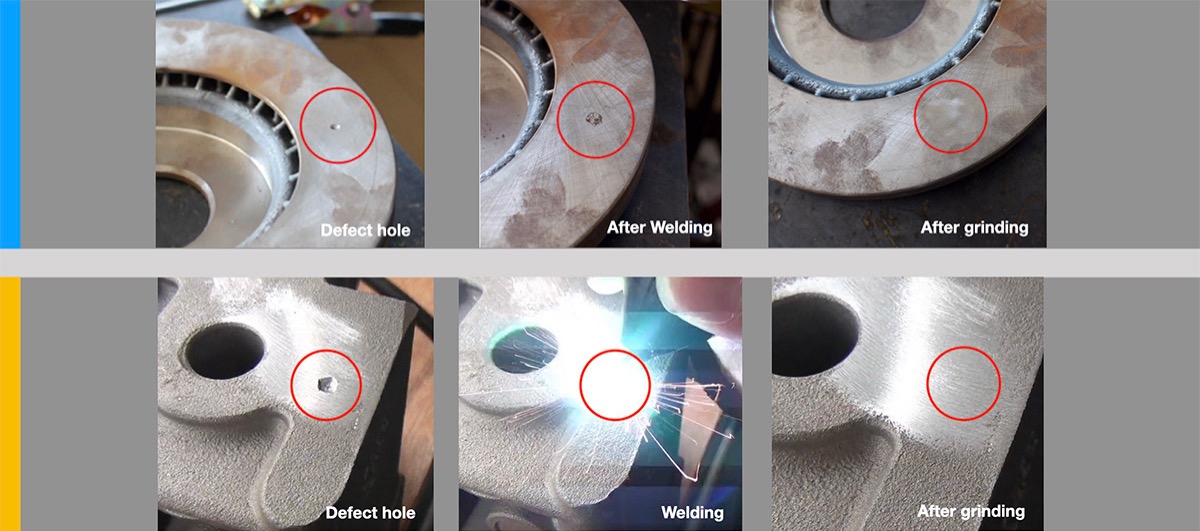

The welded area can be

re-machined

Casting welded by common welding machine can not be re-machined due to the welding hardness, but welded by ATOM cold welding machine you can re-machine the welded area again by CNC or grinding tool.

Also choose different type electrode will get different welding hardness, our professional will help you to choose the right type of electrode to match your castings.

Stable performance, easy to use

Use chopped wave soft switch technology and DSC processor,

Wide current output range to make you more easily control precision welding and high speed welding. Inverter power, energy conservation, environmental protection,

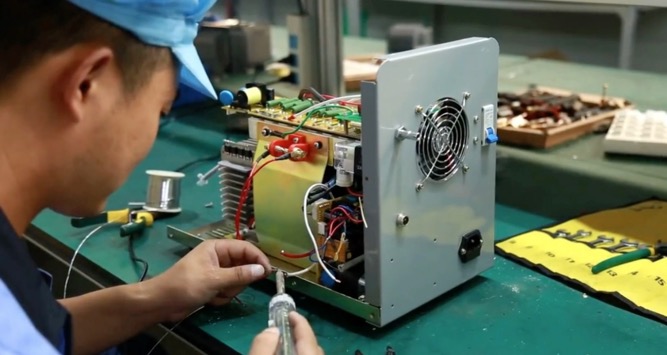

high efficiency, stable, light and smart. We take strict quality control to guarantee every machine has passed the quality checking before delivered to our clients.

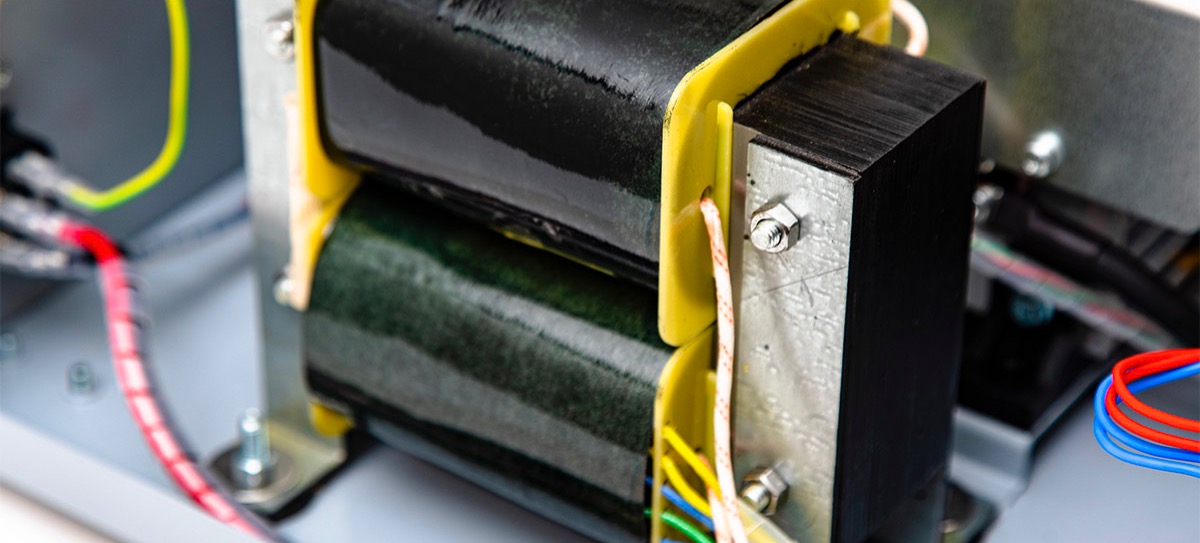

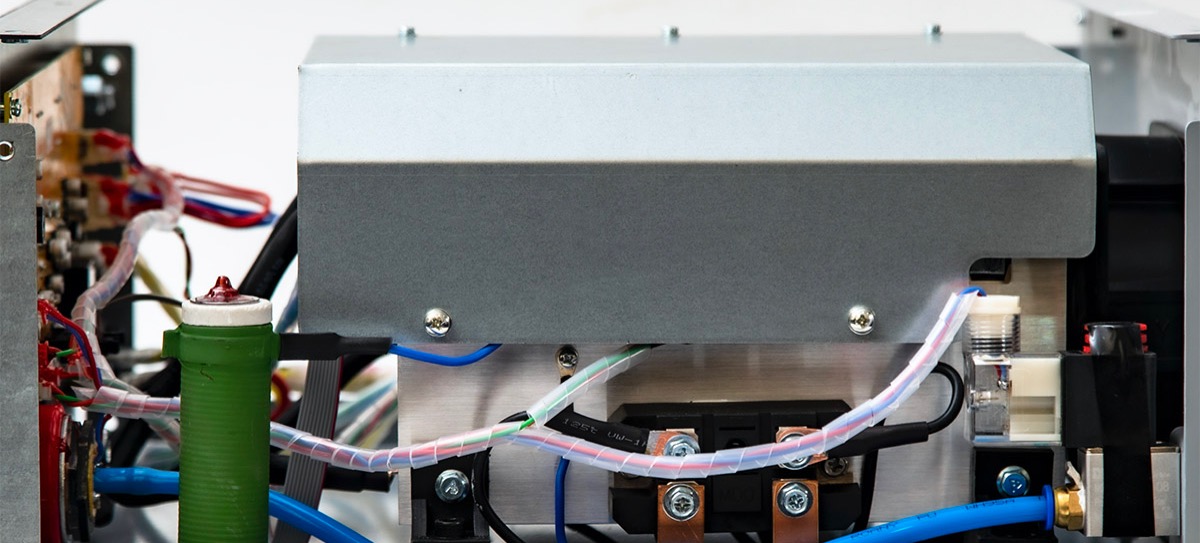

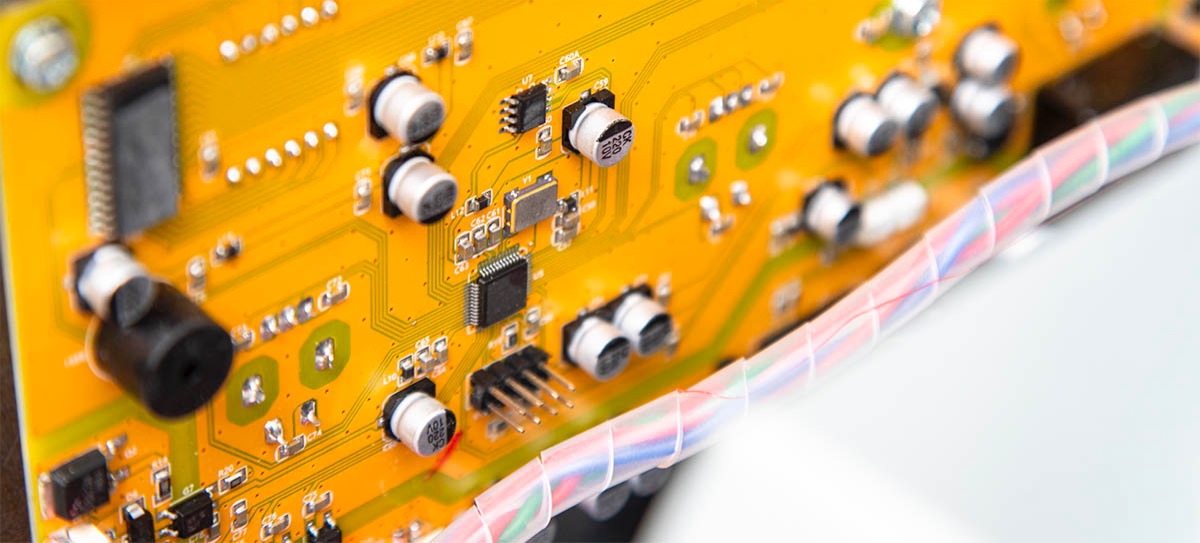

High quality electronic components

Eight hours high current working test

Two days vibration test

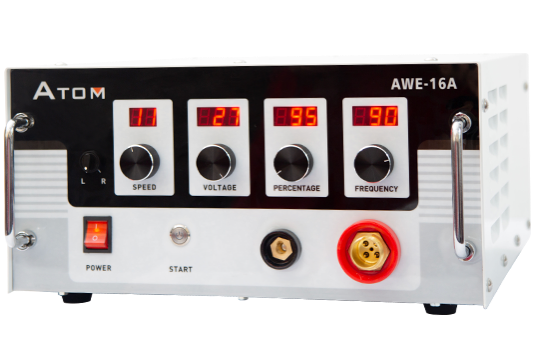

AWE-16A cold welding machine

will be your best tool to repair casting defects and reduce rejections

AWE-16A PARAMETERS

MODEL:

AWE-16A

INPUT VOLTAGE:

AC220V

POWER OUTPUT:

1200W

VOLTAGE RANGE:

10-100V

FREQUENCY:

50-500HZ

OUTPUT PERCENTAGE:

10-100%

WEIGHT:

24KGS

MACHINE SIZE:

405*210*450MM

WELDING ROD DIA.:

1.0 - 3.2MM

PACKAGE:

BOX

Send inquire
